B12 Engine Cooling

The full chapter is not available.

However, you can choose retail parts.

B12 Engine Cooling

€12,607.36
Pack content

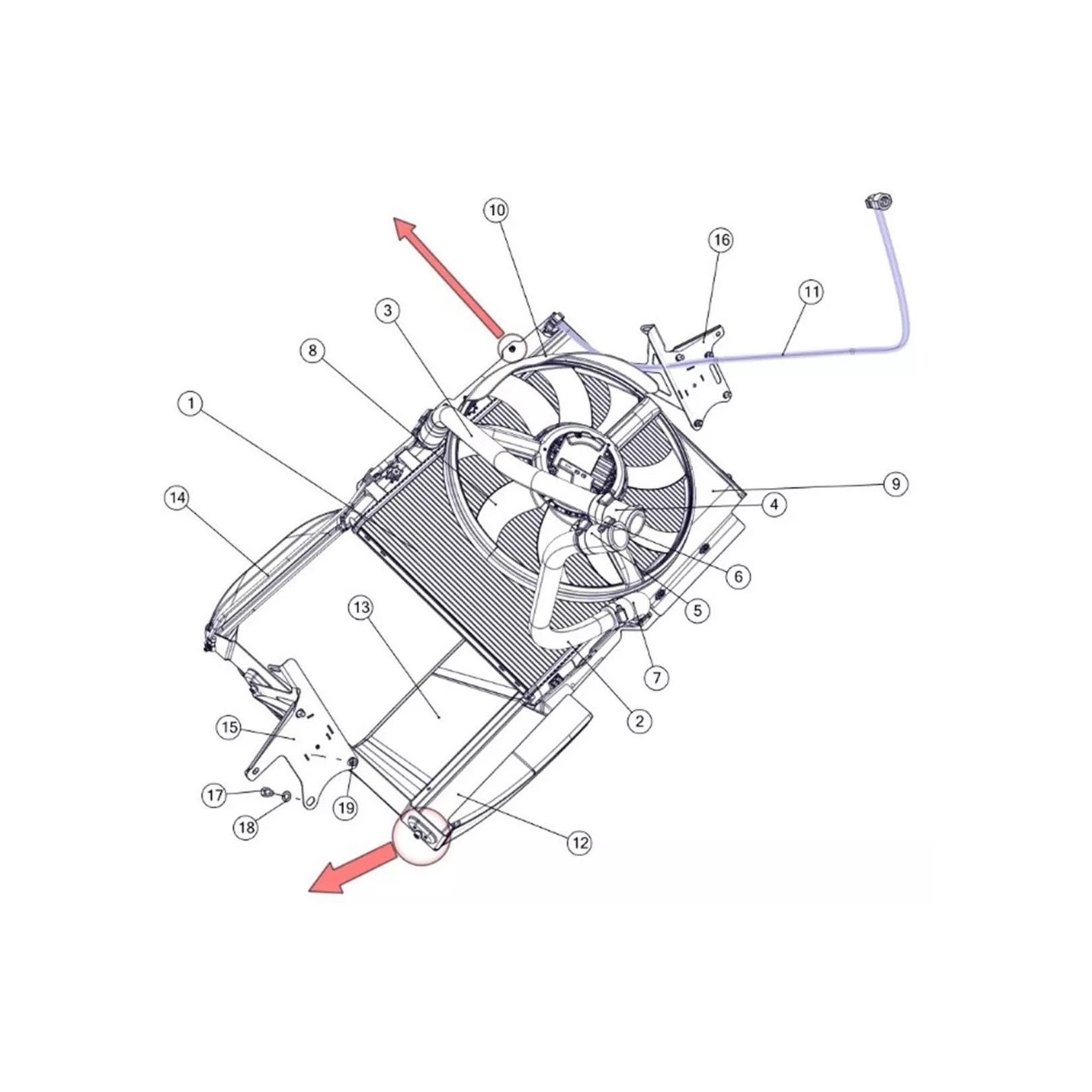

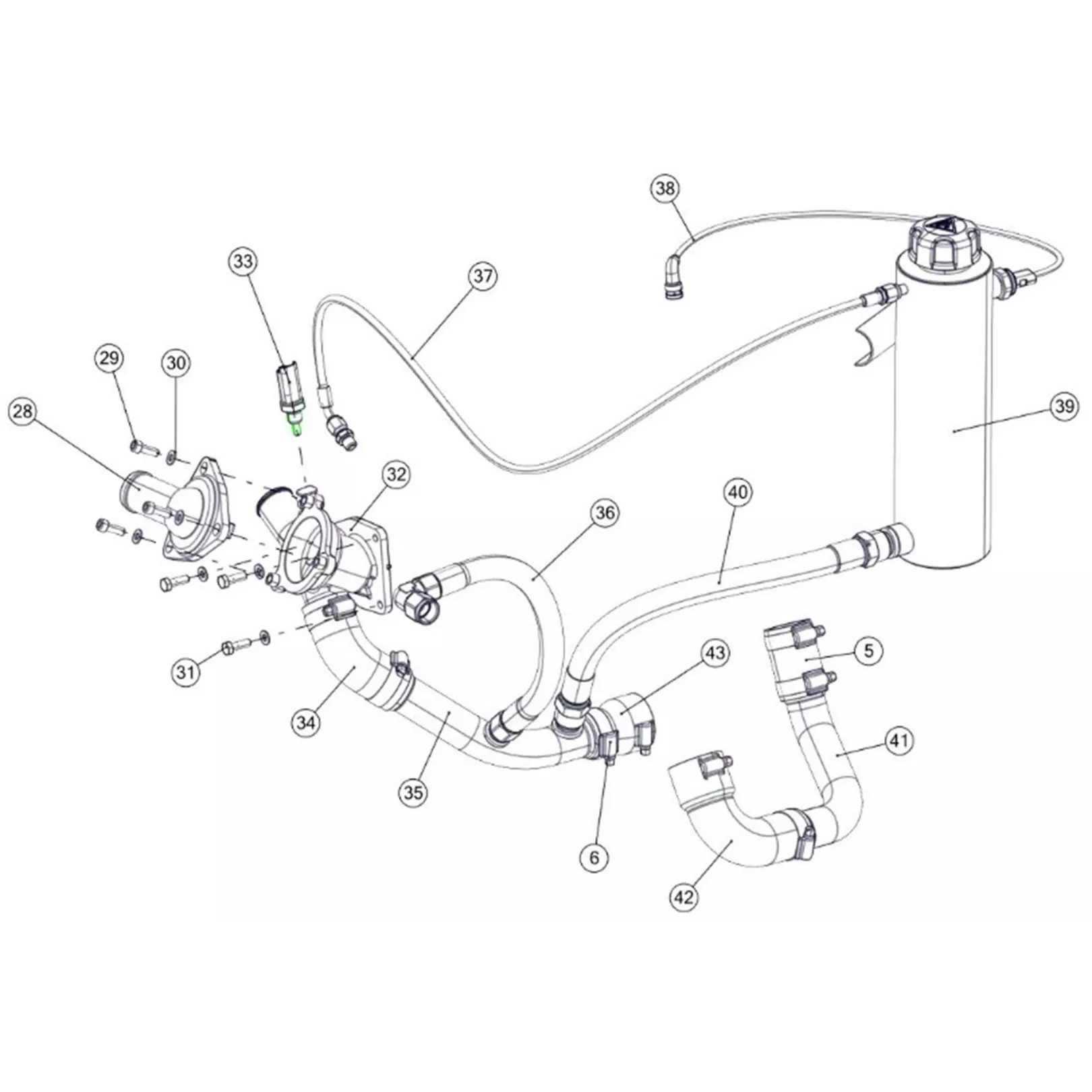

Ref Name Qty Price Number
  1 WATER COOLING RADIATOR
904498828B		 1 €362.40

  2 RADIATOR RETURN PIPE
904486108B		 1 €288.27

  3 RADIATOR INLET PIPE
904485748B		 1 €310.80

  4 HOSE Ø32 L70mm
904614548A		 1 €101.98

  5 HOSE Ø32 L60mm
904486518A		 3 €101.98

  6 COLLAR W4 30-45X9
CS160085ST		 16 €2.05

  7 HOSE ID 32 90°
904486638A		 1 €44.89

  8 Water FAN ASSY
9805897480		 1 €418.51

  9 WATER FAN BRACKET
904473698C		 1 €1,615.68

  10 FAN DEFLECTOR
904601938A		 1 €68.54

  11 DEGASSING COOLING HOSE
904496068C		 1 €186.04

  12 RAD/INT HOLDER
904473438E		 1 €2,221.06

  13 RAD/INT AIR DUCT
904473448B		 1 €1,088.76

  14 INTERCOOLER SANDOW
904608558A		 1 €99.58

  15 Left RAD/INT HOLDER Bracket
904476478D		 1 €252.43

  16 Right RAD/INT HOLDER Bracket
904476468D		 1 €411.26

  17 Socket Screw M8x125-12 12.9
PS82621A10		 8 €0.74

  18 Spring Washer Ø8
PS86510A10		 8 €0.04

  19 M6 H Nut
PS74040A10		 4 €0.44

  20 Socket Screw CHC M6-12
PS82119A10		 4 €1.54

  21 Washer Ø6x12-1,2
PS86047A10		 10 €1.29

  22 Alu TF d3.2x6 Rivet
PS92565A10		 8 €0.57

  23 Captive Nut M6
PS74673A10		 4 €4.48

  24 Socket Screw M5-12 12.9
PS82027A10		 4 €0.15

  25 Washer 5x10 1.8
6947-81		 4 €1.33

  26 TF D2,4x6 Rivet
PS92617A10		 8 €0.14

  27 Captive nut M5
PS74677A10		 4 €4.02

  28 CALORSTAT
904471028A		 1 €107.47

  29 Screw M6-18 12.9
PS82057A10		 3 €0.26

  30 HH Screw M6X20 ACIER CL12.9
PS84526A10		 3 €0.79

  31 WATER HOUSING
904486068B		 1 €1,224.00

  32 capteur température eau cablé
904476888C		 1 €234.91

  33 HOSE Ø32 45DEG
904486568A		 1 €48.96

  34 PUMP to THERMOSTAT PIPE
904486218B		 1 €540.51

  35 COCKPIT to PUMP PIPE
904489868A		 1 €397.80

  36 DEGASSING PIPE
904495498D		 1 €210.52

  37 Water pressure wired sensor
904477608B		 1 €326.46

  38 WATER TANK
904480018B		 1 €543.45

  39 WATER PUMP SUPPLY PIPE
904495798B		 1 €475.30

  40 WATER PUMP to ENGINE PIPE
904486498A		 1 €351.33

  41 HOSE Ø39-32 90DEG
904486658A		 1 €139.04

  42 Reductor hose 39-30
0B1242743A		 1 €47.05

  43 RADIATOR CAP
1306J5		 1 €6.38

  44 RACCORD 90 RAPIDE PIQUAGE M 3/8G D8
ST04100018		 2 €19.18

  45 Pipe FEP-140-D8X6
904495938A		 1 €9.98

  46 Adaptator M10x1/dash3 M/M
PS73035A10		 1 €19.72

  47 Copper seal d10.2 D13.9 Th1
PS81031A10		 1 €0.82

€12,607.36
