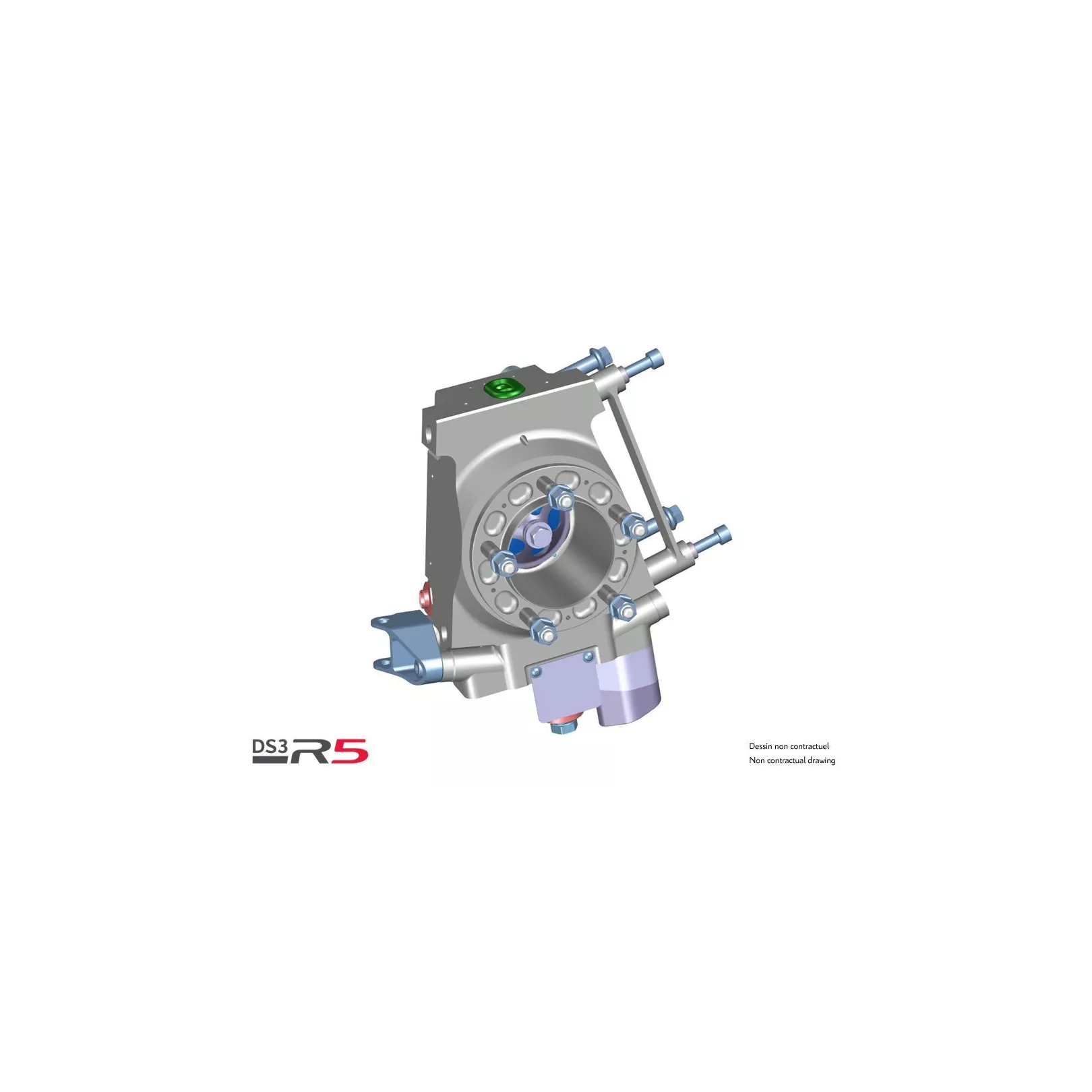

E13 Tarmac upright

DS3R5-E130.BASE.01
More
Print

Out of stock

The full chapter is not available.

However, you can choose retail parts.

E13 Tarmac upright

€14,239.53

DS3R5-E130.BASE.01
More
Print

Out of stock

Full pack

Retail

Pack content

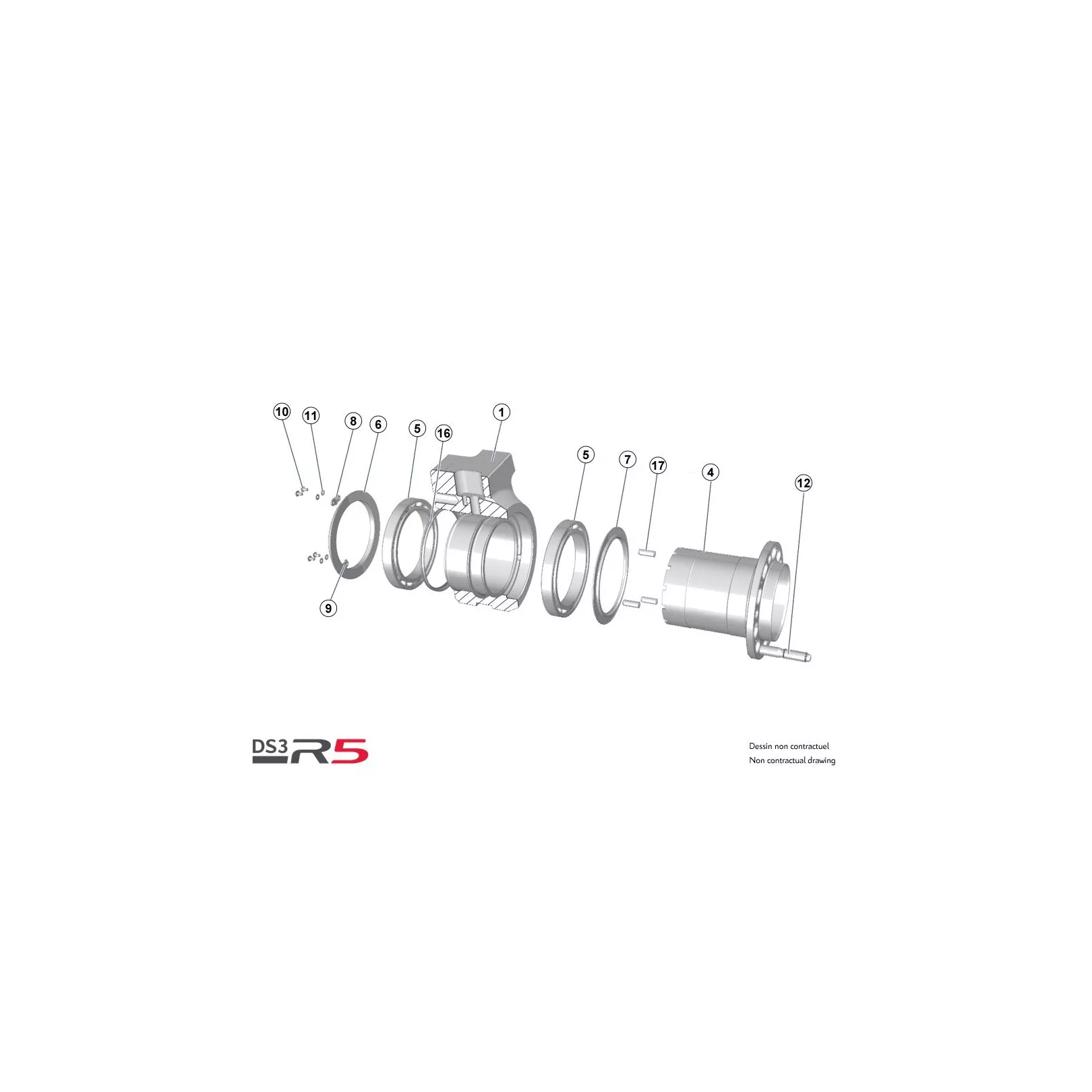

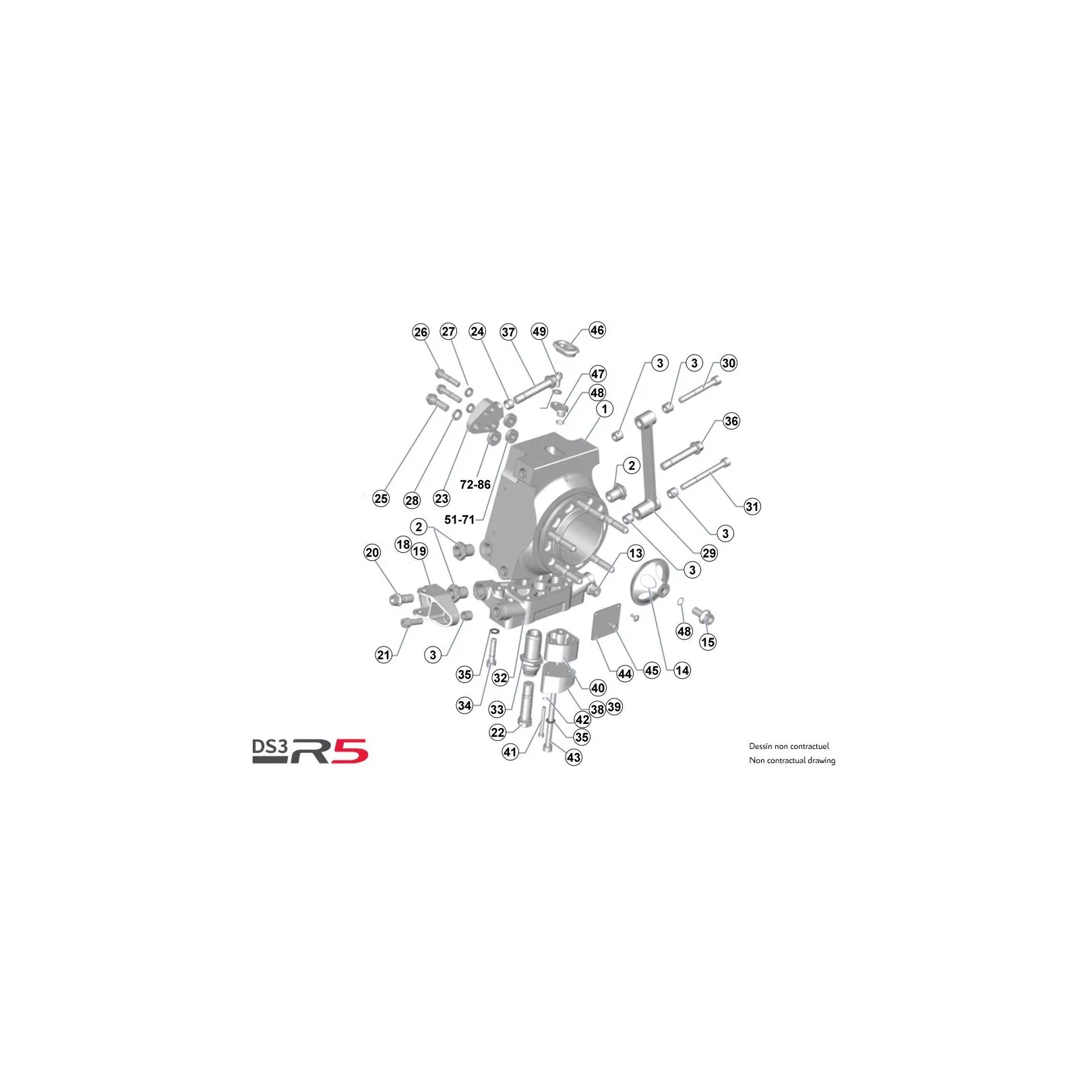

Ref	Name	Qty	Price
1	R5 Upright (with paired spacer) 1E1326058B	2	€1,260.00
	In stock		€1,260.00
2	Damper Insert 1E1326051B	6	€33.87
	In stock		€33.87
3	Locator Ø16-10x13 1E1326111A	10	€9.03
	In stock		€9.03
4	Hub M100x1 1E1318068E	2	€702.24
	In stock		€702.24
5	Reinforced Bearing 903535338B	4	€298.80
	In stock		€298.80
6	Hub Nut M100x1 Th8 1E1318063A	2	€477.00
	In stock		€477.00
7	Hub Bearing Shim 1E1318064B	2	€243.00
	In stock		€243.00
8	Stopper Type 1 1E1318086A	2	€40.41
	In stock		€40.41
9	Stopper Type 2 1E1318087A	2	€40.41
	In stock		€40.41
10	Socket Screw M4-8 12.9 PS82084A10	8	€2.64
	In stock		€2.64
11	Spring Washer Ø4 type A PS86002A10	8	€0.04
	In stock		€0.04
12	Wheel Stud Ø12x125 903538348B	10	€41.41
	Out of stock		€41.41
13	Wheel Nut Ø12x125 1E1318085B	10	€32.13
	In stock		€32.13
14	Steel Fixing Flange Rzeppa 1E1324300B	2	€275.54
	Out of stock		€275.54
15	Screw Ø12x125-24 1E1318079B	2	€21.24
	In stock		€21.24
16	Magnetic coding wheel 1E1325924A	2	€261.00
	In stock		€261.00
17	Locating pin Ø8x23 1E1318147A	6	€26.68
	In stock		€26.68
18	Right M point Clevis 1E2426554B	1	€626.40
	In stock		€626.40
19	Left M point Clevis 1E2426555B	1	€626.40
	Out of stock		€626.40
20	Screw Ø14x150-30 1E1318136C	2	€22.12
	In stock		€22.12
21	Screw CHC m10 lg30 cl12.9 PS82008A10	2	€2.24
	In stock		€2.24
22	Ne fournissons plus NFP-01	8	€0.03
	Out of stock		€0.03
23	Center Finder Ø17-14x10 1E1325079A	2	€9.09
	Out of stock		€9.09
24	Screw M12x125-38 cl12.9 1E1318143B	2	€44.64
	In stock		€44.64
25	Screw Ø10x125-48 cl12.9 1E1318144B	4	€20.42
	In stock		€20.42
26	Washer Ø10x16.5x3 1E1318145A	4	€7.22
	In stock		€7.22
27	Washer Ø12x19.5x3 1E1318146A	2	€11.47
	In stock		€11.47
28	Tarmac Caliper Mounting 1E1326127A	2	€118.32
	Out of stock		€118.32
29	Screw CHC M10x150 L80 cl12.9 PS82538A10	2	€1.76
	In stock		€1.76
30	Screw CHC M10x100 cl12.9 PS82179A10	2	€2.40
	In stock		€2.40
31	Tarmac right Point D clevis with Keenser 1E1327234A	2	€888.51
	In stock		€888.51
32	Tarmac D Point Insert 1E1326685B	2	€73.95
	Out of stock		€73.95
33	Screw CHC M10x45 cl12.9 PS82009A10	10	€1.39
	In stock		€1.39
34	SPS Washer d10-D16-E1 PS86571A10	12	€0.58
	In stock		€0.58
35	Vis MJ14x150 L83 58 cl.12.9 six pans SP 1E1328096A	2	€16.99
	In stock		€16.99
36	Right tarmac pad (FIA) 1E1326766C	1	€290.40
	Out of stock		€290.40
37	Left tarmac pad (FIA) 1E1326767C	1	€290.40
	Out of stock		€290.40
38	Tarmac pad spacer (FIA) 1E1326768A	2	€52.80
	In stock		€52.80
39	Screw M6x100-L55 PS82056A10	4	€1.44
	In stock		€1.44
40	SPS Washer Ø6x10-0,7 PS86098A01	4	€0.26
	In stock		€0.26
41	Screw M10 L120 PS82151A10	2	€0.85
	In stock		€0.85
42	D Point Protecting Plate 1E1326782A	2	€9.56
	In stock		€9.56
43	Screw ULS M5x12 cl.12.9 PS82657A10	4	€0.37
	In stock		€0.37
44	ABS Sensor Plug 96141076	2	€6.72
	Out of stock		€6.72
45	Upright plug (speed sensor) 1E1326679A	2	€101.25
	In stock		€101.25
46	O-Ring Ø10.82x1.78 903729718A	4	€2.34
	In stock		€2.34
47	HSH SCREW M8X125 L16 CL12.9 CS530139ST	2	€0.40
	Out of stock		€0.40
48	Washer 8x16-1.5 6947-78	2	€1.42
	In stock		€1.42
49	Socket Screw M5-12 12.9 PS82027A10	4	€0.28
	In stock		€0.28
50	Washer 5x16-1.5 6949-29	4	€0.76
	In stock		€0.76
51	Ducting Hose Ø80 L1m 1F2064708A	2	€43.46
	In stock		€43.46
52	Metal collar D70-90- Th9 6981J8	2	€2.85
	In stock		€2.85
53	Camber washer Ø10 thickness 6.45 1E1327417B	4	€3.46
	In stock		€3.46
54	Camber washer Ø10 thickness 6.90 1E1327418B	4	€3.46
	In stock		€3.46
55	Camber washer Ø10 thickness 7.35 1E1327419B	4	€3.46
	In stock		€3.46
56	Camber washer Ø10 thickness 7.80 1E1327420B	4	€3.46
	In stock		€3.46
57	Camber washer Ø10 thickness 8.25 1E1327421B	4	€3.46
	In stock		€3.46
58	Camber washer Ø10 thickness 8.70 1E1327422B	4	€3.46
	In stock		€3.46
59	Camber washer Ø10 thickness 9.15 1E1327423B	4	€3.46
	In stock		€3.46
60	Camber washer Ø10 thickness 9.60 1E1327424B	4	€3.46
	In stock		€3.46
61	Camber washer Ø10 thickness 10.05 1E1327425B	4	€3.46
	In stock		€3.46
62	Camber washer Ø10 thickness 10.50 1E1327426B	4	€3.46
	In stock		€3.46
63	Camber washer Ø10 thickness 10.95 1E1327427B	4	€3.46
	In stock		€3.46
64	Camber washer Ø10 thickness 11.40 1E1327428B	4	€3.46
	In stock		€3.46
65	Camber washer Ø10 thickness 11.85 1E1327429B	4	€3.46
	In stock		€3.46
66	Camber washer Ø10 thickness 12.30 1E1327647A	4	€7.00
	In stock		€7.00
67	Camber washer Ø10 thickness 12.75 1E1327648A	4	€7.00
	In stock		€7.00
68	Camber washer Ø12 thickness 6.45 1E1327431B	2	€4.03
	In stock		€4.03
69	Camber washer Ø12 thickness 6.90 1E1327432B	2	€4.03
	In stock		€4.03
70	Camber washer Ø12 thickness 7.35 1E1327433B	2	€4.03
	In stock		€4.03
71	Camber washer Ø12 thickness 7.80 1E1327434B	2	€4.03
	In stock		€4.03
72	Camber washer Ø12 thickness 8.25 1E1327435B	2	€4.03
	In stock		€4.03
73	Camber washer Ø12 thickness 8.70 1E1327436B	2	€4.03
	In stock		€4.03
74	Camber washer Ø12 thickness 9.15 1E1327437B	2	€4.03
	In stock		€4.03
75	Camber washer Ø12 thickness 9.60 1E1327438B	2	€4.03
	In stock		€4.03
76	Camber washer Ø12 thickness 10.05 1E1327439B	2	€4.03
	In stock		€4.03
77	Camber washer Ø12 thickness 10.50 1E1327440B	2	€4.03
	In stock		€4.03
78	Camber washer Ø12 thickness 10.95 1E1327441B	2	€4.03
	In stock		€4.03
79	Camber washer Ø12 thickness 11.40 1E2427442B	2	€4.03
	In stock		€4.03
80	Camber washer Ø12 thickness 11.85 1E1327443B	2	€4.03
	In stock		€4.03
81	Camber washer Ø12 thickness 12.30 1E1327649A	2	€10.58
	In stock		€10.58
82	Camber washer Ø12 thickness 12.75 1E1327650A	2	€10.20
	In stock		€10.20

€14,239.53
