C23 Gearbox

  • Out of stock

The full chapter is not available.

However, you can choose retail parts.

C23 Gearbox

€37,433.60
  • Out of stock
Pack content
Ref Name Qty Price Number

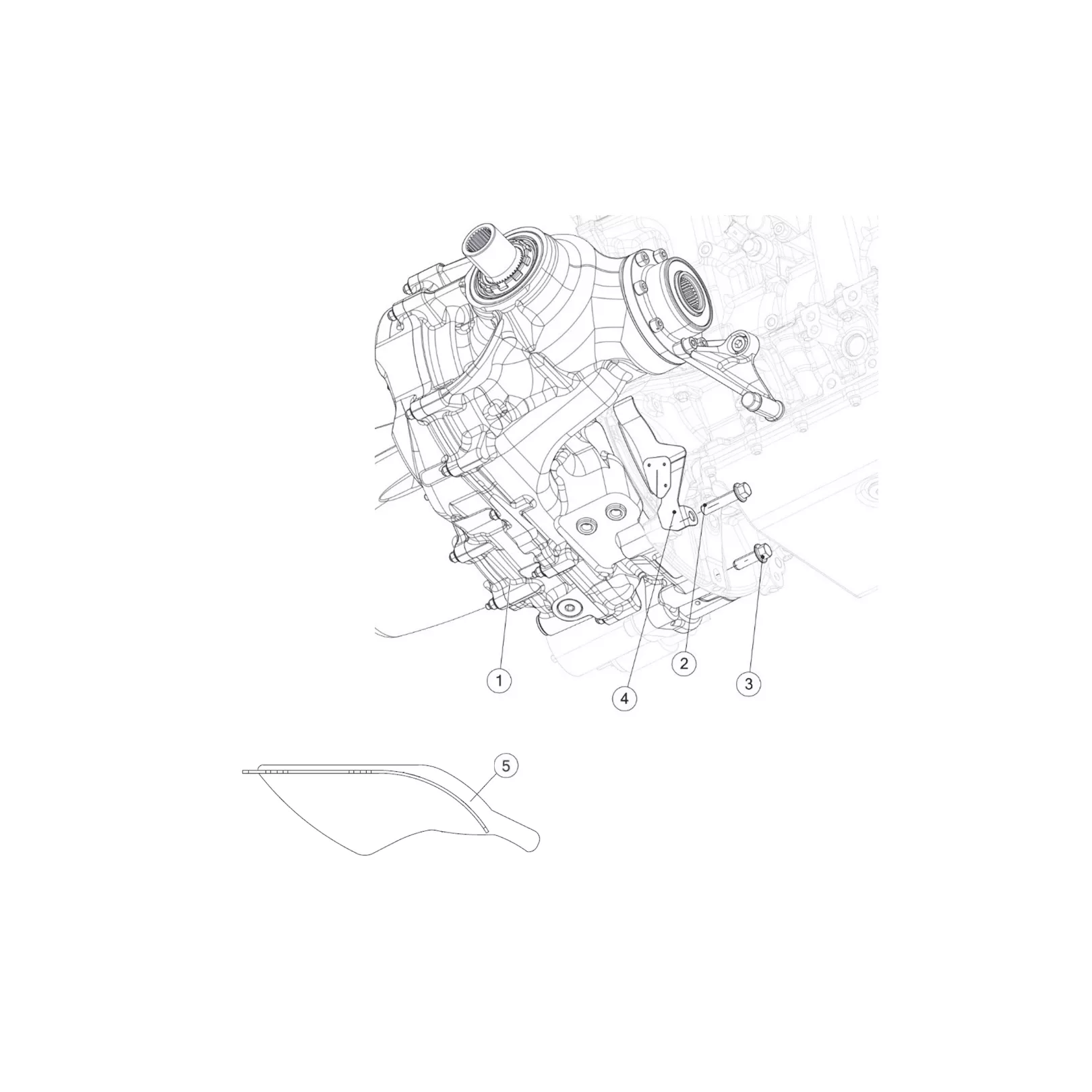

  1 SHORT STEPPED GEARBOX 40/75 8FF
904863278A
1 €29,400.00

  2 n Gearbox Screw M10x150 L45
904481408B
5 €12.27

  3 ScrewM10x150 L 30
904613878A
1 €22.24

  4 GEARBOX LOWER COVER
904604998B
1 €310.50

  5 GEARBOX UPPER COVER
904604988A
1 €198.54

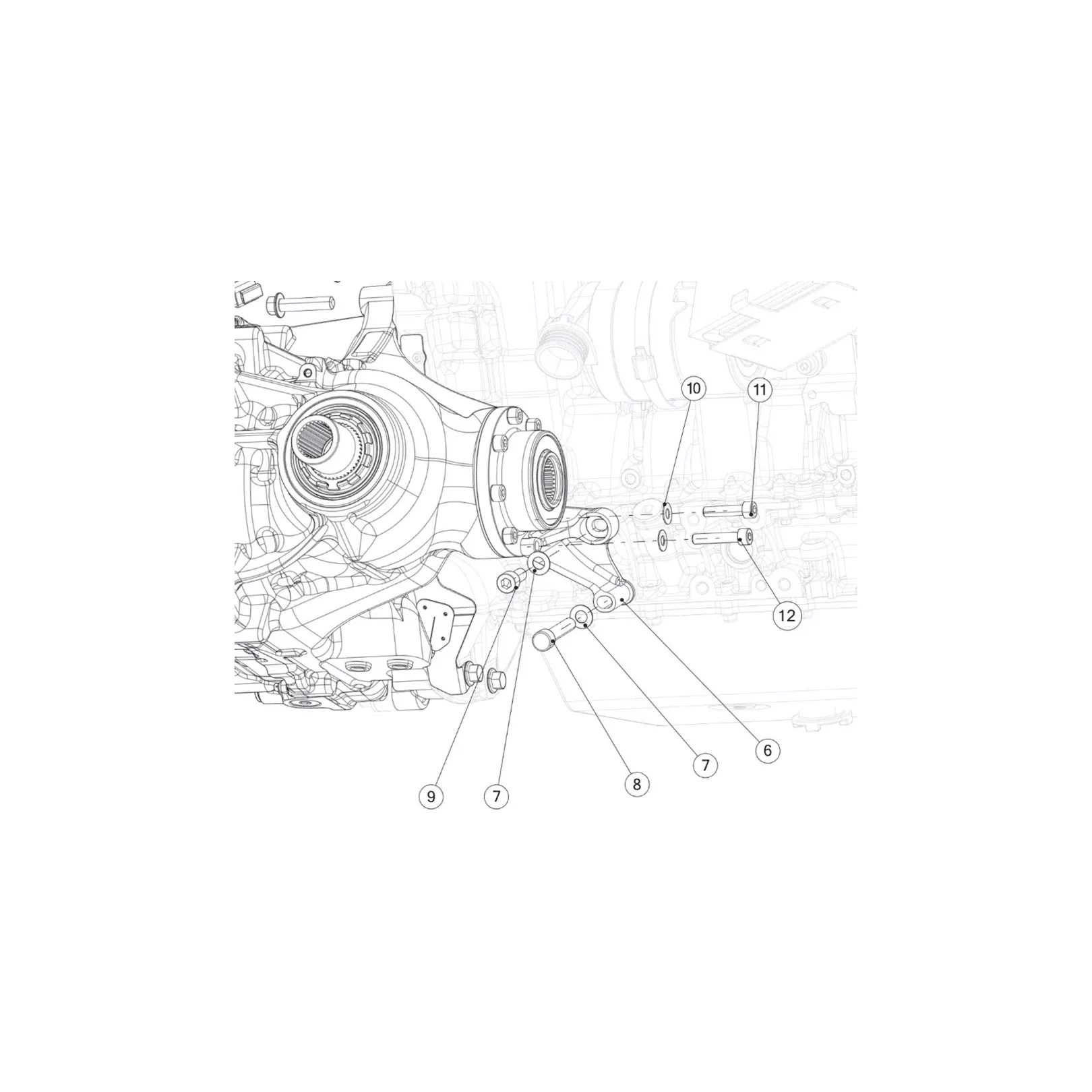

  6 Gearbox reinforcement bracket
904478558B
1 €717.02

  7 Spring Washer Ø10 Type B
PS86538A10
2 €0.49

  8 Screw M10-55
PS82145A10
1 €2.77

  9 Socket Screw M10-25
PS82094A10
1 €2.02

  10 Spring Washer Ø8
PS86510A10
2 €0.10

  11 Socket Screw M8x125-35 12.9
PS82082A10
1 €0.34

  12 Screw CHC M8x40 cl.12.9
PS82010A10
1 €1.76

  13 SCREW Ø6X100-20
6925G5
1 €1.03

  14 CAMSHAFT POSITION SENSOR (FIA SPEED)
1920LS
1 €70.15

  15 GEARBOX OIL ELF HTX750 (CAN 1L)
904895438A
4 €39.91

  16 31 splines socket
FOUT9053024
2 €161.84

  17 Support précharge diff.
FOUT9053005
1 €413.02

  18 Compression spacer
FOUT9053035
1 €248.11

  19 Outil précharge tube porte couronne
FOUT9053039
1 €482.73

  20 Preload adjusting tool
FOUT9053016
1 €689.60

  21 Douille côté roue conique
FOUT9037020
1 €284.29

  22 Anti rotation sortie conique
FOUT9053056
1 €254.76

  23 Douille écrou couronne
FOUT9053001
1 €493.48

  24 Socket for shaft nut
FOUT9037006
1 €367.30

  25 Anti splay plate
FOUT9053041
1 €79.09

  26 Antirotation serrage écrou couronne pont
FOUT9053033
1 €483.25

  27 Douille de précharge rlt arbre d'entrée
FOUT9053040
1 €278.56

  28 Piste précharge roulement Ø127
FOUT9053046
1 €313.89

  29 Douille de serrage
FOUT9042303
1 €677.29

  30 Anti rotation arbre d'entrée
FOUT9040024
1 €181.21

  31 Rear diff limiter preload socket
FOUT9048005
1 €313.41

  32 Diff housing tool
FOUT9053011
1 €601.22

€37,433.60
